Clintheriform Antenna |
Standard model (5.8/7/8/11/13/15/18/23/26GHz) |
High performance model (7/8/11/13/15/18/23/26GHz) |
¡ïXiBao's clintheriform Antenna is made with new technique, like completion stretching aluminum plate. That make XiBao's products ours are of high precision and low weight. |
¡ïLower VSWR and lower system noises |

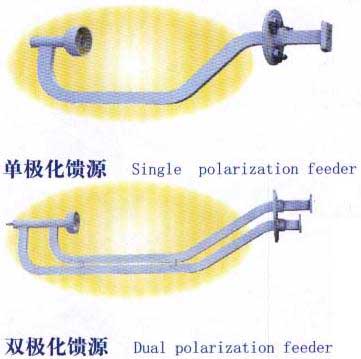

¡ïSingle polarization or dual polarization front feed electric form |
¡ïHigh quality aluminium alloy reflection face good in face precision. |
¡ïExcellent embalmment |
¡ïFirm framework leads to reliable performance |
¡ïFor common front-to-back ratio systems |
Cooperating with many communication equipment factories, we have been producing kinds of high performance antenna connecting ODU directly. |
Performance Index | ||||||||||
(GHz) |
caliber (m) |
gain
(dB) |
VSWR | half Power area(dgree) | front-to-back ratio(dB) | polarization form | adjustment | feeder joint | ||
common | better | common | better | |||||||
7.125-7.725 single polarization |
0.6 | 30.8 | 1.10 | 4.80 | 4.90 | 40 | 52 | level ¡¡ or vertical |
azimuth£º ¡¡¡À10¡ã pitching£º |
PDR70
PDR84 |
0.9 ¡¡ |
34.3 | 1.10 | 3.10 | 3.40 | 44 | 55 | ||||
1.2 | 36.8 | 1.10 | 2.40 | 2.80 | 47 ¡¡ |
58 | ||||
1.5 | 38.7 | 1.07 | 1.90 | 1.95 | 50 | 62 | ||||
2.0 | 41.2 | 1.07 | 1.40 | 1.47 | 53 ¡¡ |
64 | ||||
2.5 | 42.9 | 1.07 | 1.10 | 1.15 | 55 | 66 | ||||
3.2 | 45.3 | 1.06 | 0.90 | 0.98 | 59 | 68 | ||||
7.725-8.275 single polarization |
0.6 | 31.4 | 1.10 ¡¡ |
4.4 | 4.47 ¡¡ |
41 | 53 ¡¡ |
level ¡¡ or vertical ¡¡ |
azimuth£º ¡¡¡À10¡ã pitching£º |
PDR84
PBR84 |
0.9 | 34.5 | 1.10 | 3.00 | 3.21 | 45 ¡¡ |
56 | ||||
1.2 | 37.2 | 1.10 | 2.20 | 2.30 | 48 | 59 | ||||
1.5 | 39.4 | 1.08 | 1.80 | 1.89 | 51 | 63 | ||||
2.0 | 41.9 | 1.07 | 1.30 | 1.38 | 53 | 64 | ||||
2.5 | 43.5 ¡¡ |
1.07 | 1.10 | 1.21 | 55 | 67 | ||||
3.2 | 46.0 | 1.06 | 0.80 | 0.90 | 58 | 69 | ||||
8.2-8.5 single polarization |
0.6 | 31.7 | 1.10 | 4.20 | 4.25 | 38 | 41 ¡¡ |
level ¡¡ or vertical |
azimuth£º ¡¡¡À10¡ã pitching: |
PDR84
PBR84 |
0.9 | 34.9 ¡¡ |
1.10 | 2.90 | 2.96 | 42 | 45 | ||||
1.2 | 37.6 | 1.10 | 2.10 | 2.15 | 47 | 53 | ||||
1.5 | 39.7 | 1.08 | 1.80 | 1.86 ¡¡ |
47 ¡¡ |
53 | ||||
2.0 | 42.2 | 1.07 ¡¡ |
1.30 | 1.36 | 51 | 53 | ||||
2.4 ¡¡ |
43.9 ¡¡ |
1.06 | 1.00 | 1.05 | 53 | 56 | ||||
3.2 | 46.3 | 1.06 | 0.80 | 0.85 | 57 | 61 | ||||
10.7-11.7 single polarization |
0.6 | 34.2 | 1.10 | 3.20 | 3.25 ¡¡ |
38 | 40 | level ¡¡ or vertical |
azimuth£º ¡¡¡À10¡ã pitching£º |
PDR100
PBR100 |
0.9 | 37.3 | 1.10 | 2.00 | 2.06 | 29 | 30 | ||||
1.2 | 40.4 | 1.07 | 1.60 | 1.67 | 30 | 32 | ||||
1.5 | 42.3 | 1.07 | 1.30 | 1.36 | 30 ¡¡ |
32 | ||||
2.0 | 45.0 ¡¡ |
1.07 | 0.90 | 0.96 | 30 ¡¡ |
34 | ||||
2.4 | 46.4 | 1.06 ¡¡ |
0.70 | 0.75 | 30 ¡¡ |
34 | ||||
3.2 | 49.0 | 1.06 ¡¡ |
0.60 | 0.69 | 30 ¡¡ |
32 | ||||
12.25-13.25 single polarization |
0.6 | 35.5 ¡¡ |
1.10 ¡¡ |
2.80 ¡¡ |
3.00 | 45 ¡¡ |
56 | level ¡¡ or vertical |
azimuth£º ¡¡¡À10¡ã pitching£º |
PDR120
PBR120 |
0.9 | 38.8 ¡¡ |
1.10 | 2.00 | 2.80 | 49 | 61 | ||||
1.2 ¡¡ |
41.5 ¡¡ |
1.07 | 1.30 | 1.35 | 52 | 63 | ||||
1.5 ¡¡ |
43.6 | 1.07 | 1.10 | 1.09 ¡¡ |
56 ¡¡ |
66 | ||||
2.0 | 46.1 | 1.07 | 0.80 | 0.82 ¡¡ |
59 | 69 | ||||
2.4 | 47.5 ¡¡ |
1.06 | 0.70 ¡¡ |
0.75 | 60 | 71 | ||||
3.2 | 50.2 | 1.06 | 0.60 | 0.68 | 62 | 75 | ||||
14.4-15.35 single polarization |
0.6 | 36.6 | 1.10 ¡¡ |
2.40 | 2.43 | 45 | 61 |
level ¡¡ or vertical ¡¡ |
azimuth£º ¡¡¡À10¡ã pitching£º |
PDR140
PBR140 |
0.9 ¡¡ |
40.6 | 1.10 | 1.60 ¡¡ |
1.65 | 48 | 63 | ||||
1.2 | 42.5 | 1.07 ¡¡ |
1.20 | 1.29 | 53 | 65 | ||||
1.5 | 44.6 | 1.07 ¡¡ |
1.00 | 1.10 | 54 | 67 | ||||
2.0 | 47.1 | 1.07 ¡¡ |
0.70 ¡¡ |
0.80 | 55 ¡¡ |
71 | ||||
2.4 | 48.8 | 1.06 ¡¡ |
0.60 | 0.68 | 57 | 72 | ||||
17.7-19.7 single polarization |
0.3 | 31.2 ¡¡ |
1.20 ¡¡ |
3.10 ¡¡ |
3.80 | 43 | 56 ¡¡ |
level ¡¡ or vertical ¡¡ |
azimuth£º ¡¡¡À10¡ã pitching£º ¡¡¡À10¡ã |
PDR180
PBR220 |
0.6 | 38.3 ¡¡ |
1.20 ¡¡ |
1.81 | 1.87 | 46 | 60 | ||||
0.9 ¡¡ |
42.4 | 1.20 ¡¡ |
1.31 | 1.40 ¡¡ |
52 | 63 | ||||
1.2 | 44.3 | 1.20 ¡¡ |
0.80 | 0.90 | 54 | 65 | ||||
21.2-23.6 single polarization |
0.3 | 34.8 | 1.20 ¡¡ |
____
¡¡ |
2.00 | ___ ¡¡ |
60 | level ¡¡ or vertical ¡¡ |
azimuth£º ¡¡¡À10¡ã pitching£º ¡¡¡À10¡ã |
PBR220 |
0.6 | 40.3 ¡¡ |
1.20 ¡¡ |
1.60 ¡¡ |
66 | ||||||
0.9 ¡¡ |
43.4 | 1.20 ¡¡ |
1.10 | 68 | ||||||
1.2 | 46.3 | 1.20 ¡¡ |
0.80 | 72 | ||||||
24.25-26.5 single polarization |
0.3 ¡¡ |
35.9 | 1.20 ¡¡ |
____ | 2.50 ¡¡ |
____ | 60 ¡¡ |
level ¡¡ or vertical ¡¡ |
level ¡¡ or vertical ¡¡ |
PBR220 |
0.6 | 41.0 ¡¡ |
1.20 ¡¡ |
1.40 | 67 | ||||||
0.9 | 44.4 | 1.20 ¡¡ |
1.10 ¡¡ |
69 | ||||||
1.2 | 46.8 | 1.20 ¡¡ |
0.70 | 73 | ||||||
Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60 Ghz to 110 Ghz, and the range of their waveguide can be from R284(BJ32)-WR10(BJ900). |
