Gain Horn Antenna

                              ¡ïPrecise gain
                              ¡ïSimple structure
                              ¡ïEasy use

Model

Frequency

VSWR

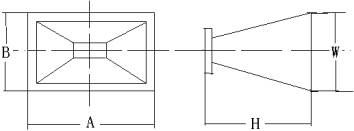

 dimension(mm)
H W
XB-GHA-90-20
 8.20-12.5GHz ¡Ü1.20 156.0
140.3
XB-GHA-90-22 261.0 176.6
XB-GHA-90-25 552.0 249.4
XB-GHA-75-20
 9.84-15.0 GHz 130.0 116.9
XB-GHA-75-22 218.0 147.3
XB-GHA-75-25 460.0 207.9
XB-GHA-62-20
 11.9-18.0 GHz 112.0 100.2
XB-GHA-62-22 186.0 126.2
XB-GHA-62-25 394.0 177.0
XB-GHA-51-20
 14.5-22.0 GHz 87.0
 77.9
XB-GHA-51-22 145.0 98.2
XB-GHA-51-25 307.0 138.6
XB-GHA-42-20
 18.0-26.5 GHz 71.0 63.8
XB-GHA-42-22 119.0 80.3
XB-GHA-42-25 251.0 113.4
XB-GHA-34-20
 21.7-33.0 GHz 62.0 53.9
XB-GHA-34-22 101.0 67.9
XB-GHA-34-25 213.0 113.4
XB-GHA-28-20
 26.3-40.0 GHz 49.0 43.8
XB-GHA-28-22 82.0 55.2
XB-GHA-28-25 173.0 76.3
XB-GHA-22-20
 32.9-50.1 GHz 39.0 35.1
XB-GHA-22-22 35.0 44.2
XB-GHA-22-25 138.0 62.4
Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 1.14GHz¡«110GHz, and the range of their waveguide can be from WR649(BJ14)¡«WR10(BJ900).
