Straight Waveguide E(H)-plane Bend Twist Waveguide
|
Model |
Frequency (GHz) |
VSWR |
Dimension A (inch) |
|
XB-HE(H)-284
|
2.60-3.59 GHz
|
¡Ü1.15
|
-
|
|
XB-HE(H)-137
|
5.38-8.17 GHz
|
-
|
|
|
XB-HE(H)-112
|
6.57-9.99 GHz
|
-
|
|
|
XB-HE(H)-90
|
8.20-12.5 GHz
|
70.0
|
|
|
XB-HE(H)-75
|
9.84-15.0 GHz
|
50.0
|
|
|
XB-HE(H)-62
|
11.9-18.0 GHz
|
38.0
|
|
|
XB-HE(H)-51
|
14.5-22.0 GHz
|
38.0
|
|
|
XB-HE(H)-42
|
18.0-26.5 GHz
|
38.0
|
|
|
XB-HE(H)-34
|
21.7-33.0 GHz
|
38.0
|
|
|
XB-HE(H)-28
|
24.5-40.0 GHz
|
38.0 | |
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 1.14 Ghz to 110 Ghz, and the range of their waveguide can be from WR649(BJ14)-WR10(BJ900). | |||
|
Model |
Frequency (GHz) |
VSWR |
Dimension A (inch) |
|
XB-HE(H)-284
|
2.60-3.59 GHz
|
¡Ü1.15
|
-
|
|
XB-HE(H)-137
|
5.38-8.17 GHz
|
-
|
|
|
XB-HE(H)-112
|
6.57-9.99 GHz
|
-
|
|
|
XB-HE(H)-90
|
8.20-12.5 GHz
|
70.0
|
|
|
XB-HE(H)-75
|
9.84-15.0 GHz
|
50.0
|
|
|
XB-HE(H)-62
|
11.9-18.0 GHz
|
38.0
|
|
|
XB-HE(H)-51
|
14.5-22.0 GHz
|
38.0
|
|
|
XB-HE(H)-42
|
18.0-26.5 GHz
|
38.0
|
|
|
XB-HE(H)-34
|
21.7-33.0 GHz
|
38.0
|
|
|
XB-HE(H)-28
|
24.5-40.0 GHz
|
38.0 | |
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 1.14 Ghz to 110 Ghz, and the range of their waveguide can be from WR649(BJ14)-WR10(BJ900). | |||
¡¡

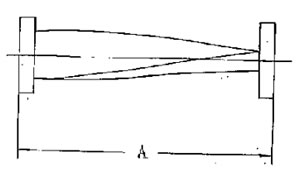

| 90¡ãTwist Waveguide is act as a torsion connecter in the microwave transmission system. |
| Model | Frequency (GHz) | Flange | VSWR | A Length(mm)in | Weight (g) oz |
|
XB-TW-90-90¡ã
|
8.2-12.4
|
UG39/U
|
1.10
|
(140)5.5
|
-
|
|
XB-TW-75-90¡ã
|
10.0-15.0
|
UBR120
|
1.10
|
(125)5.0
|
(156)5.5 |
|
XB-TW-62-90¡ã
|
12.4-18.0
|
UG419/U
|
1.10
|
(100)4.0
|
(113)4.0
|
|
XB-TW-42-90¡ã
|
18.0-26.5
|
UG595/U
|
1.10
|
(75)3.0
|
(48)1.7
|
|
XB-TW-34-90¡ã
|
21.7-33.0
|
UG1530/U
|
1.10
|
(75)3.0
|
(45)1.5
|
|
XB-TW-28-90¡ã
|
26.5-40.0
|
UG599/U
|
1.10
|
(75)3.0
|
(34)1.2
|
|
XB-TW-22-90¡ã
|
33.0-50.0
|
UG383/U
|
1.10
|
(70)2.8
|
(30)1.1
|
|
XB-TW-19-90¡ã
|
40.0-60.0
|
UG383/UM
|
1.10
|
(50)2.0
|
(45)1.6
|
|
XB-TW-15-90¡ã
|
50.0-75.0
|
UG385/U
|
1.10
|
(45)1.7
|
(28)1.0
|
|
XB-TW-12-90¡ã
|
60.0-90.0
|
UG387/U
|
1.10
|
(45)2.0
|
(28)1.0
|
|
XB-TW-10-90¡ã
|
75.0-110.0
|
UG387/UM
|
1.10
|
(45)2.0
|
(25)0.9
|
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60 Ghz to 110 Ghz, and the range of their waveguide can be from R284(BJ32)-WR10(BJ900). | |||||
