Crystal Detector Tune Detector

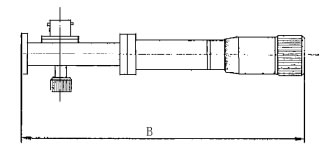

model | frequency(GHz) | rang | B(mm)dimensions |
TD-90B | 8.2-12.4 | 200mv/wm | 160.0 |
TD-75B | 10.0-15.0 | 140.0 | |
TD-62B | 12.4-18.0 | 105.0 | |
TD-42B | 18.0-26.5 | 85.0 | |
TD-34B | 21.7-33.0 | 75.0 | |
TD-28B | 26.5-40.0 | 65.0 | |
Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60GHz¡«110GHz, and the range of their waveguide can be from WR284£¨BJ32£©¡«WR10(BJ900). |
Model | Frequency (GHz) | Flange | Diode | Dimension B(mm) |
XB-CD-90B | 8.2-12.4 | UG39/U | 2DV27B |
160 |
XB-CD-75B |
10.0-15.0 | UBR120 | 140 | |
XB-CD-62B |
12.4-18.0 | UG419/U | 105 | |
XB-CD-42B | 18.0-26.5 | UG595/U | 85 | |
XB-CD-34B | 21.7-33.0 | UG1530/U | 75 | |
XB-CD-28B | 26.5-40.0 |
UG599/U |
65 | |
Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60 Ghz to 110 Ghz, and the range of their waveguide can be from R284(BJ32)-WR10(BJ900). |
