Waveguide Switch Variable Phase Shifter Variable Shorter
| £Å££È Plane Waveguide Switch is for signal tunnels change. Turning the knob, you are able to change double transmission tunnels. |
| Model | Frequency (GHz) | VSWR | Isolation | ¦µA(mm) | B(mm) |
| XB-WSH90 | 8.2-12.4 | <1.20 | >40 | 70 | 90 |
| XB-WSE90 | 60 | 90 | |||
| XB-WSH75 | 10.0-15.0 | 60 | 80 | ||
| XB-WSE75 | 60 | 80 | |||
| XB-WSH62 | 12.4-18.0 | 50 | 70 | ||
| XB-WSE62 | 50 | 70 | |||
| XB-WSH42 | 18.0-26.5 | 50 | 70 | ||
| XB-WSE42 | 50 | 70 | |||
| XB-WSH34 | 22.0-33.0 | 45 | 60 | ||
| XB-WSE34 | 45 | 60 | |||
| XB-WSH28 | 26.5-40.0 | 45 | 60 | ||
| XB-WSE28 | 45 | 60 | |||
| XB-WSH10 | 73.8-112 | 45 | 60 | ||
| XB-WSE10 | 45 | 60 | |||
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60 Ghz to 110 Ghz, and the range of their waveguide can be from R284(BJ32)-WR10(BJ900). | |||||
| Model | Frequency (GHz) | Flange | Phase |
VSWR |
Dimension A ¡Á B(mm) |
| XB-VPS-90 | 8.2-12.4 | UG39/U | >180¡ã | <1.20 | 150 ¡Á 70 |
| XB-VPS-75 | 10.0-15.0 | UBR120 | 130 ¡Á 70 | ||
| XB-VPS-62 |
12.4-18.0 | UG419/U | 110 ¡Á 65 | ||
| XB-VPS-42 | 18.0-26.5 | UG595/U | 75 ¡Á 60 | ||
| XB-VPS-34 | 21.7-33.0 | UG1530/U |
75 ¡Á 60 | ||
| XB-VPS-28 | 26.5-40.0 | UG599/U | 65 ¡Á 55 | ||
| XB-VPS-22 | 33.0-50.0 | UG383/U | 60 ¡Á 55 | ||
| XB-VPS-19 | 40.0-60.0 | UG383/UM | 60 ¡Á 55 | ||
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60 Ghz to 110 Ghz, and the range of their waveguide can be from R284(BJ32)-WR10(BJ900). | |||||

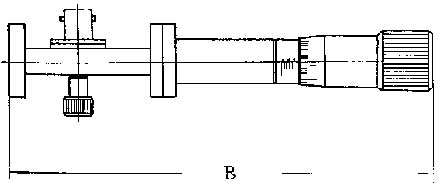

There should be a continues short reference in your microwave transmission system. Adjusting micrometer head is to change the position of the short reference.
|
| Model | Frequency | Moving Range | Precision | Dimension B(mm) |
| XB-VS-284 | 2.60-3.95GHz | >10mm(max to 25mm) | 0.01£¨mm£© | ¡¡ |
| XB-VS-229 | 3.22-4.90 GHz | ¡¡ | ||
| XB-VS-187 | 3.94-5.99 GHz | ¡¡ | ||
| XB-VS-159 | 4.64-7.05 GHz | ¡¡ | ||
| XB-VS-137 | 5.38-8.17 GHz | ¡¡ | ||
| XB-VS-112 | 6.57-9.99 GHz | ¡¡ | ||
| XB-VS-90 | 8.20-12.5 GHz | 160.0 | ||
| XB-VS-75 | 9.84-15.0 GHz | 140.0 | ||
| XB-VS-62 | 11.9-18.0 GHz | 105.0 | ||
| XB-VS-51 | 14.5-22.0 GHz | 95.0 | ||
| XB-VS-42 | 18.0-26.5 GHz | 85.0 | ||
| XB-VS-34 | 21.7-33.0 GHz | 75.0 | ||
| XB-VS-28 | 26.3-40.0 GHz | 65.0 | ||
| Products mentioned above are the regular products, and XiBao can design, develop and manufacture the products to meet your specifications. The frequency range of special series can be from 2.60GHz¡«110GHz, and the range of their waveguide can be from WR649(BJ14)-WR10(BJ900). | ||||
